Vacuum Manipulators for Boxes, Sacks, Drums and More
The Vacful from BPM is a pneumatic rope-system manipulator designed for safe, ergonomic handling of bags, boxes, cartons, sacks and other packaged loads. These manipulators are part of the FastTrack range of pre-engineered lifting systems available with industry-beating lead times from approximately 4 weeks. The pneumatic lift system allows “weightless” balancing, helping operators lift, move and position products with less physical strain and greater control.
Its modular design allows it to be supplied as column-mounted, overhead or rail-mounted systems, making it suitable for production, packing and warehouse environments.
Models & Technical Specifications
Vacful Box
Capacity: up to 25 kg
Radius: up to 3,000 mm
Best for: Specifically designed for handling small and lightweight boxes, cartons, and packages.
Vacful Bag
Capacity: up to 50 kg
Radius: up to 2,500 mm
Best for: Suitable for handling medium-weight bags and sacks.
Vacful Multi
Capacity: up to 100 kg
Radius: up to 3,000 mm
Best for: Offers an easily interchangeable gripper system, enabling ergonomic handling of various drums, barrels, tins, and kegs using both vacuum and specialised hook attachments.
Need something different?
Alongside the standard models shown here, we can also offer alternative vacuum configurations, rotations, capacities and working radii — as well as other proven lifting and handling systems suited to different applications.
Weight Capacity
Max Radius
Vertical Lift
Supply Pressure
Air Consumption
Vacful Box
0-25 kg
3000 mm
1600 mm
7-8 Bar
21 NL/min
Vacful Bag
0-50 kg
2500 mm
1600 mm
7-8 Bar
21 NL/min
Vacful Multi
0-100 kg
3000 mm
1800 mm
7-8 Bar
21 NL/min
- Reduces manual handling strain
- Precise operator control
- Suitable for delicate products
- Increased speed and efficiency
- Can be column, ceiling or rail mounted
- Ideal for production or warehouse use

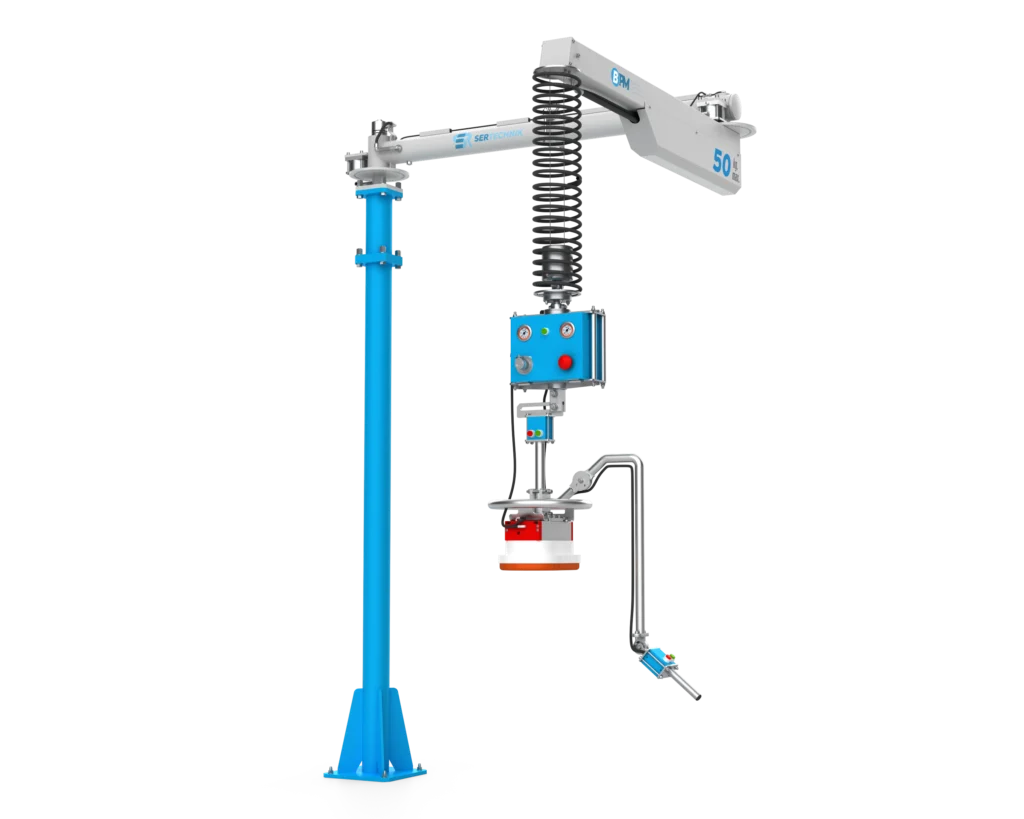

Column Mounted
For standalone workstation handling.
Overhead Mounted
For clear floor space and fixed working zones.

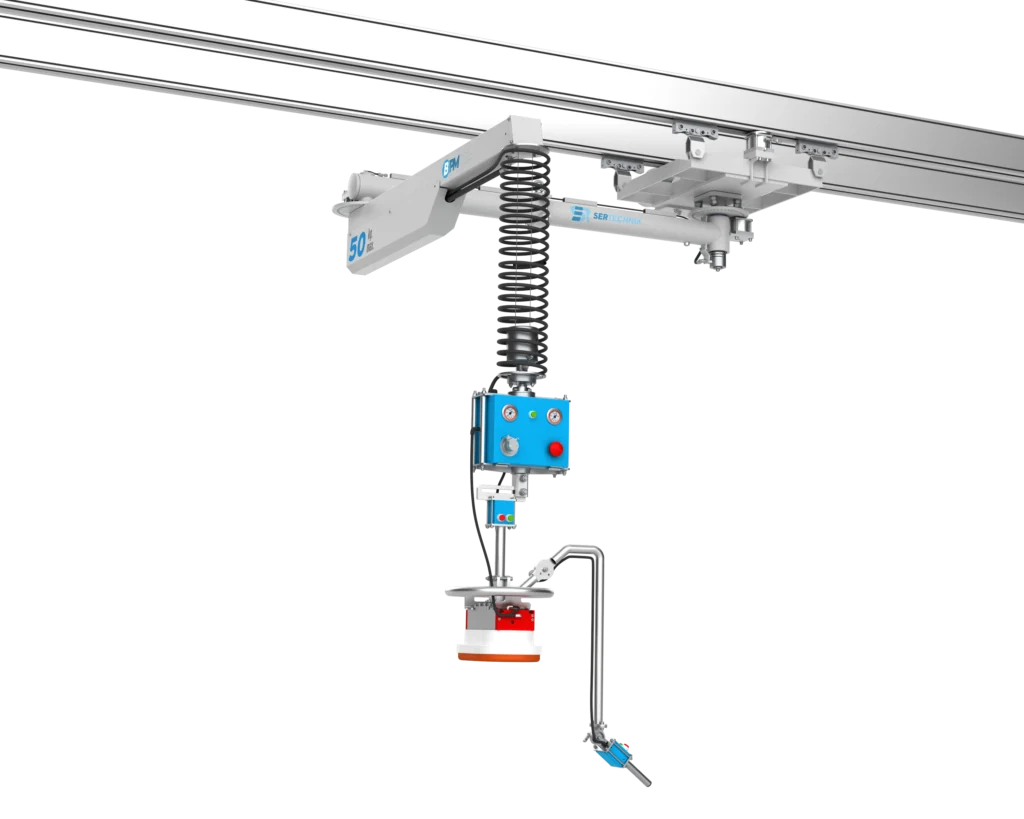

Overhead Rail Mounted
For longer travel across a workstation or production line.
Need help choosing the right vacuum manipulator?
Every lifting application is different. Let us know the load weight, product type, working area and lifting frequency, and we’ll help you identify the right handling solution for your production requirements. That may be a standard BPM VacuFul manipulator, a tube lifter, or a bespoke system tailored to your process, space and product handling needs.
